A Plinth for the SP 10-Mk2
SP-10, SP-10 Mk2, SP-10 Mk3

BACK TO THE SP-10 PAGE

AN OBJECT OF ART

According to various reviews at the time when the SP10 mkii was launched, many stated that the problem with the SL1000 (SP10 in the obsidian base plus feet) is that they measured some mechanical feedback when playing music relatively loud.
Hi-Fi Choice from Great Britain reported that the bass was somewhat slender and there was some shallowness in the mid and upper mid frequency region. This is certainly caused by the amorphous "structure" of volcanic glass (and any other glass often used for platters).
This criticism does not make the complete SL-1000, as the Technics engineers designed it as an entity, less desirable, less unique. In this way it can be considered as an example of industrial design as it was achieved in the nineteen seventies of the last century. Thus seen it is an object of art. But for sound reasons...

OBSIDIAN BASE FOR MK3

The Technics SP-10Mk3 is a completely different turntable. The opening for the motor in the obsidian base for the Mk3 is a round hole and it can not accomodate Mk2.

KANETA BASE FOR SP-10 MK3

It seems that the motor unit alone, which is the SP-10 Mk2, was sold in higher quantities. No wonder many audiophiles and designers construct plinths from wood which makes a sonic difference if wood is chosen with specific sound porperties: propagation and speed of sound, density of the material, and stiffness. That is why Akito Kaneta chose layers of a specific wood for his base of the Technics SP-10Mk3. In the picture at left (courtesy Richard Huxley from France), the Kaneta philosophy was applied, although in the original Kaneta version the SP-10 is stripped and just the motor unit with platter is mounted on the layered wooden plinth. Also the power supply was altered.



MANY ROADS LEAD TO ROME

In case you come accross an SP-10 Mk2 or Mk3 without the SH-10B3, there are several options to construct a base/plinth. You either can go the Cotter way and make the suspended type, or construct a solid plinth of several layers of wood, or even add thin layers of aluminum or sheets of steel in between the wooden pannels, and then place this plinth on rubber feet. Such a base or a similar construction can give a harmonious sound and better dynamics in the lower register and a firmer mid band. You know that if the bass is not firm, full and controlled, the rest of the spectrum suffers.

Material Density
Speed
Aluminum 2.6989 6.36
Carbon 2.26 18.1
Copper 8.94
Iron 7.8733 5.95
Lead 11.34 3.83
Zinc 7.133
Acryl 1.2 < 3.83
Brass 8.3
Boron 2.34
Beryllium 1.85
Titanium 4.507
Magnesium 1.74
Rubber   < 1.45
Felt   < 0.98

If you do not own the obsidian base you will have to construct a solid and relatively heavy base and de-couple it from its environment by means of insulating rubber feet. Various materials can be used for the base:

  • multiple layers of particle board (chip board)
  • plywood covered or combined with a thin sheet of aluminum (1 mm)
  • layers of thin wood glued together
  • serpentino (thin plate of stone, about 10 mm, with a sort of grainy and not too dense structure), andmbine it with a wooden panel, and there is - as some people suggest -
  • corian.

Better not use corian as it has a frequency curve with emphasis on high frequencies, depending on the thickness. I have tried it for arm base and for a 5 mm thick turntable mat shaped according to the drawing on my page about  . The properties of corian are not always as desired because the percentages of aluminum varies (large or small flakes, more or less flakes).
And better not use MDF, or sparingly because of its odd frequency characteristic which shows uneven sonic qualities with emphasis in the lower mid area. This anomaly may disappear when you use many layers and construct a very heavy base. But then the fact remains that it is in fact "dust", the dust particals pressed and bonded.

I myself am not an advocate of too heavy plinths made of materials with a high density. Better choose the material and the volume in accordance with speed of sound and an even frequency characteristic without abrupt filtering of the signal. In that case the sound dissipates gradually.

The data for stiffness, density and soundpropagation are important in order to get an idea of what the best combination of materials is. Look for the data of sound propagation in materials. A few data in the table at left are taken from The Practising Scientist's Handbook, written and compiled by Alfred J. Moses (Van Nostrand Reinhold Company, New York, 1978).

It is obvious that carbon has almost 3 times the speed of aluminum. Hence it is preferred by cartridge builders for the material of the cantilever. See also the difference between aluminum and acrylic. These materials have a significant effect on the measure of tangibility of the sound.

If certain materials are used in alternate layers, they team up very well for arm boards and chassis, whereas acrylic alone gives less definition and detail.

A wooden plinth coated with a thick, shiny layer of lacquer may influence the frequency characteristic in a negative way.

The frequency of the isolating rubber feet or springs supporting the base plate (the SP10mk2 unit included) should preferably be in the region of 2 to 4 Hz.



LIGHT
floating, relative light weight chassis de-coupled by springs

HEAVY
solid, relative heavy plinth on rubber feet, cones or specific points
lively, speed, slam, good transient
> <
restrictive, controlled, may be less engaging
risk for colouration
> <
neutrality
empirical search for best materials in relation to sound
> <
choice of materials
and combination
seem less critical
precise combination of materials eliminates resonances
> <
unwanted effects generally cancelled by sheer weight
tonearm and arm board become part of the construction
> <
base / plinth does have a less critical effect on tonearm
adding a second tonearm will alter the performance of the total system somewhat
> <

the heavy plinth/base allows more tonearms to be mounted

distortion prone if not critically and emperically damped
> <
damping is critrical to eliminate mechanical feed back
poor tonearm quality
influences the sound
> <
a low quality tonearm can sound better than it actually is
choice of cartridge is very critical as it easily interacts with arm/ board / plinth
> <
cartridge will naturally show its actual quality in relation to a specific tonearm
measures have to be taken to prevent swinging (wow) in the horizontal plane
> <
heavy plinths (and platters) add to stability of the nominal speed
in case of a belt drive turntable, the motor should be located in a heavy housing to prevent transmitting vibrations
> <
in case of a direct drive turntable, the motor benefits from the heavy plinth

VARIATIONS

The choice of materials, the amounts used, and the position in the total concept determine the quality of a turntable, loudspeaker, amplifier, cd-player, cable, etc. In short: choice, amounts and topology can make or break the quality of the reproduction, deteriorate or improve the sound.
Most high-end components have been designed accordingly on the basis of a quasi unlimited budget. While in cheap, mass marketed audio systems the budget is the restrictive factor, the best solutions for the dollar have been sought by the engineers.
This adage naturally applies to the Technics SL-1000 Mk2 (SP-10Mk2 on plinth with cover) and though considered high end, it was produced in relative large quantities.
Some reservations exist concerning the use of volcanic glass (obsidian) for the plinth and maybe the EPA 100 tonearm, but at the same time the system was optimized in other details, for example the addition of plywood to the small arm board which would have a somewhat counteracting, positive effect.

Shape and damping of the suspension in a light floating chassis turntable are extremely important. They are as important as size, contact area, and design (shape) of the feet for a turntable system mounted on a heavy plinth - be it of slate, volcanic glass or massive wood.
Diminishing mechanical feed back coming from external sources may seem the main objective, but springs and feet do play a role in damping vibrations in the chassis or plinth itself, as I found out.

Some time ago I obtained a second and perfectly working SP-10 Mk2 unit with the high quality EPA-A501 tonearm with exchangeable arm tubes (wands). The unit had previously been in use in a studio. It is mounted on a stone plinth made of slate measuring 550 x 440 x 28 mm. When installing the table it soon became clear that the top area of the rubber isolating feet influences the frequency characteristic significantly. The smaller the contact area of the top of the feet touching the underside of this slate plinth, the better the sound reproduction is (B).
But that is because this slate plinth of 2.8 cm thick can pick up vibrations. If you look at the slate plinths on OswaldsMillAudio, the plinths are thicker and heavier.
OswaldsMillAudio

No matter how well the turntable system works, it will always be the result of a compromise. The lesser compromise the better of course.

At left a list of choices which will have a greater or lesser effect when designing a complete turntable system or when building just a plinth for an existing motor. Just for you to contemplate and decide what the plinth you want to construct should be like. Going heavy is a less complicated way if compared to designing/composing a plinth by using various materials which have their effect on increasing the harmonics and the transient.

ALBERT PORTER'S MK-2 BASE

The following pictures were send to me by professional photographer Albert Porter. They show the solid base he constructed for his SP-10 mkII with SME SME 312S (Magnesium), and Air Tight PC1 Moving Coil cartridge.
He made the plinth thicker and heavier than 30 mm to 35 mm (1-11/64 inch to 1-3/8 inch) which is the minimum, indicated on the original Technics mounting template of which he bought a real size copy from me.

He used multiple layers of Baltic Birch plywood, an aluminum sheet and Bass wood.


The massiveness of the plinth can be seen in the opening of the arm board and the room the tonearm base needs. The arm board has about the same thicknes as the top panel of plywood. The arm board is attached to two rectangular strips of thick brass. There are three threaded holes in each strip for mounting the arm board. This solution is very practical. It not only provides a secure and firm connection of arm base and platter (no bending mode), in this way various arms can easily be mounted.

 This picture gives an idea of how the panels were cut out according to the instructions on the template, and how they were arranged. This picture shows that the aluminum sheet has not been cut out (yet?). You can contact Albert Porter to get more details.
In front lays the heavy piece of iron which is incorporated in the bottom of the base. It weighs 20 pound and guides a threaded brass rod to the spindle (underside) of the motorand touches it to drain any motor/spindle noise.

This is the unfinished base with the SP-10 Mk2 mounted on it. It shows that the height of the base is substantial.

The exterior is wrapped in black African Wenge, a dense, hard wood.

The plinth Albert Potter constructed does not rest on feet, spikes, rubber dampers, cones, or whatever is generally used for coupling such an important component to the environment. Albert states: "There is no need for suspension with this Technics as there is no feedback problem. The plinth as shown weighs 85 pounds (38 kg., Ed.) and sits in my equipment and software bookcase on a 2.5" (6,35 cm., Ed.) Maple butcher block shelf, approximately 20 feet (6 m., Ed.) from the speakers."

Well, how does it sound?
Albert writes: "My other turntable is a Walker Proscenium, which is one of the best turntables in the world. The Walker is fitted with the Koetsu Jade Platinum Signature. I would classify the two tables as somewhat equal and at the same time, different. The Technics seems to be as quiet and speed accurate as possible, but it is much more dynamic than the more expensive table. I am almost 100% sure that's due to the cartridge difference but plan on doing testing soon, I've asked Air Tight to loan me another cartridge for my Walker so I can do an exact comparison."

And he continues: "The Air Tight PC1, which many reviewers are calling "the best cartridge in the world" is truly superb. Much faster, lower distortion and higher output than my Koetsu. The Koetsu is more beautiful in the midrange and more musical but at the expense of speed and resolution. Like all things, also in audio it is impossible to have it all. I do know some of this is due to the Air Tight PC1 being 0.6 mV and the Koetsu has 0.2 mV output. That probably accounts for the gain and dynamic differences and (of course) increases the apparent signal to noise ratio in my all tube phono stage. Larger input voltage means less gain required from tubes to achieve equal SPLs from my preamp, amps and speakers."


This plinth and the plinth Albert Porter designed for the Mk3 motor deck and the way they are constructed may well inspire any owner of an SP-10 Mk2 or Mk3 turntable. But certainly also those who want to make a beautiful base for their respective high grade turntables in order to gain excellent physical and frequency related sound properties.

Albert Porter is a reviewer for Positive Feedback Online. You can view Albert Porter's audio system there.

And you can visit his Albert Porter's Audio Website.

For comments you can reach him there per email:
Albert Porter
.

Anyone who has a similar or different proposal for a plinth (eventually to be published on this page), is welcome to e-mail me too.

ALBERT PORTER'S BASE FOR MK-3

At left you see a different concept for a plinth. It is the Ebony plinth Albert Porter devised for his Technics SP-10 Mk3 motor deck.

The core of the plinth is a construction of thicker panels than in the original SP-10 Mk2 plinth. Shown here are the two Panzerholz sections bonded and milled plus basswood panel and 6061 aluminum plate. There is also the iron block and brass rod, but the iron block is not yet driilled or threaded.

Here you see the assembled core of the plinth.
"Core" assembly shown with one of Albert Porters Technics SP-10 Mk2 tables. The plinth may also be used with the Technics SP-10Mk2 as both turntables need the same cut out. The plinth can be built to many quality levels from strip down to deluxe. This is the most strip down version with just clear lacquer but works good.




Layers in proper sequence for MK2, filler panels must be added for MK3 and deluxe exterior parts if wanted.

Note that there are four circular filler inserts only for the MK3. They may be removed to accommodate the MK2 in the same same plinth. The inserts do not touch the Technics or outer plinth construction except by two stainless steel screws on each, which fasten to the Basswood panel in center. There are two brass mount rails with brass screws to mount the arm board.

Bottom view showing iron block and rod in final position with brass secure nut. Note that bottom is 3/8" hard Maple, stained to match the Ebony lumber. Four corners have been tapped for brass studs and StillPoints are installed. Albert Porter likes the esthetics of Stillpoints but the plinth resting on Stillpoints will have to be tested yet.

Here is a rear view of Ebony plinth, showing split grommet + plate system for cables.

Albert Porter adds: I also designed a platform for my MK3 to rest on, it's 9 layers, including a layer of Texas Instruments FerriShield with dedicated ground plane. It's finished in Piano Black and is a mirror design of the MK3 plinth, with same angles, corners and shape.

You can read various posts on AudiogoN. Albert Porter tells about the quality achieved. He also relates about the cost of the total project.


SP-10MK2 OWNER'S MANUAL

The brochured, exact copy of the Technics SP-10 Mk2 Owner's Manual in English on DIN A4.

The cost: $7 / Euro 5
Shipment is not included.

Click to order the Owner's Manual.

 TOP OF PAGE





SP-10
REAL SIZE MOUNTING TEMPLATE
INSTALLATION DIAGRAM
MONTAGE PLAN
SCHEMA D'INSTALLATION
INSTALLATIONSDIAGRAM
MONTAGE-DIAGRAM

Large real size copy of the original mounting template.

The cost: $12 / Euro 9.
Shipment is not included.

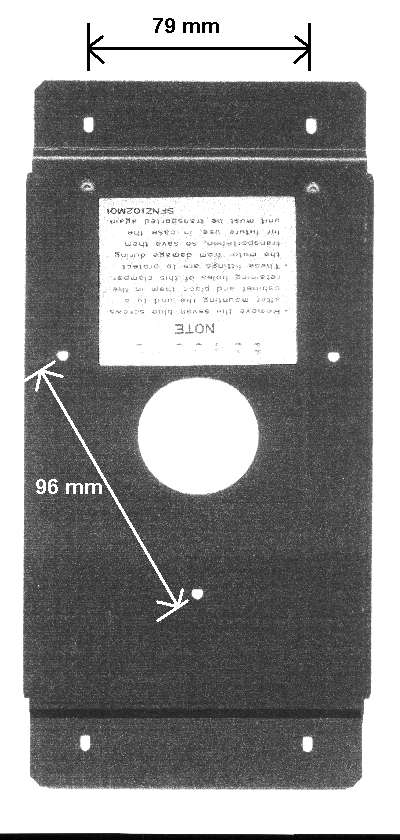

I will add a real size template for the construction of the clamp/shipping bracket. For that you can use a sheet of aluminum.
